WHAT IS ROLLIN LOADING SYSTEM?

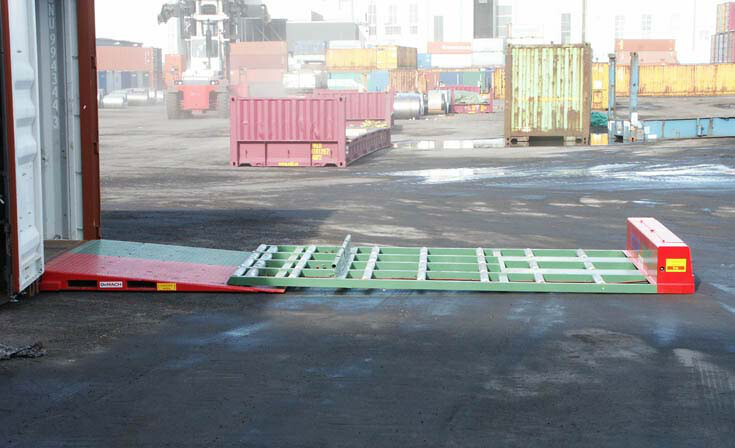

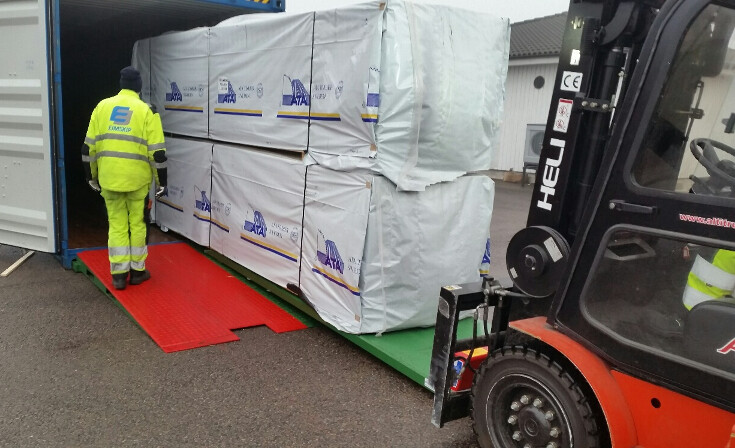

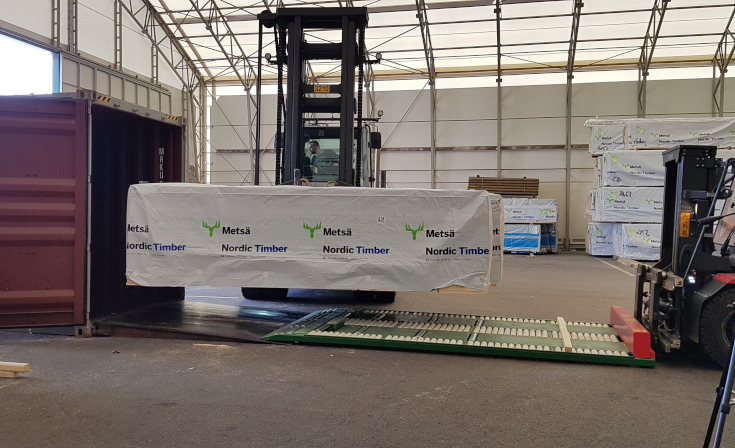

ROLLIN – loading machine is a platform with rolls, on which products are moved into freight spaces. You can load sea containers, trucks, and trailers by driving freight units into freight spaces fast and in a safe way.

ROLLIN LOADING MACHINE FEATURES

  • ROLLIN -machines have load bearing rolls und under the unit and rolls also on the deck.
  • As a driving force is a small capacity forklift.

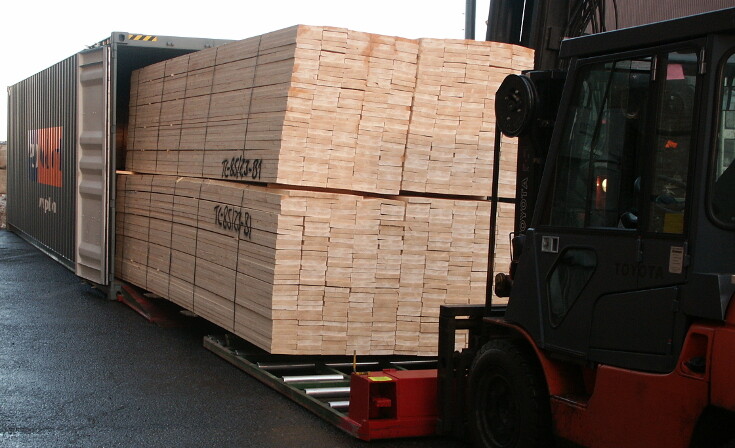

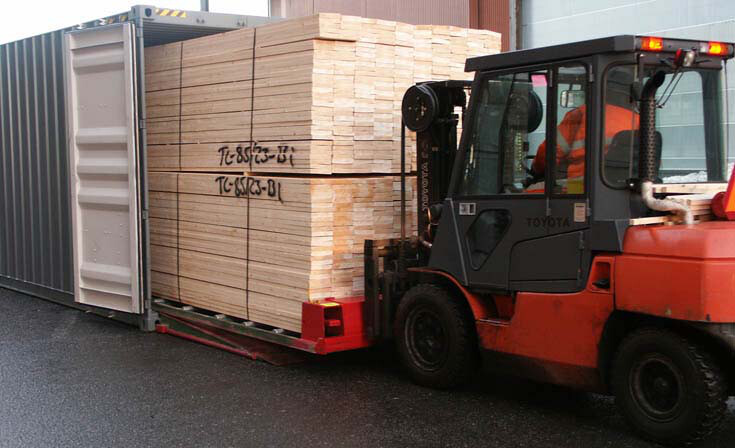

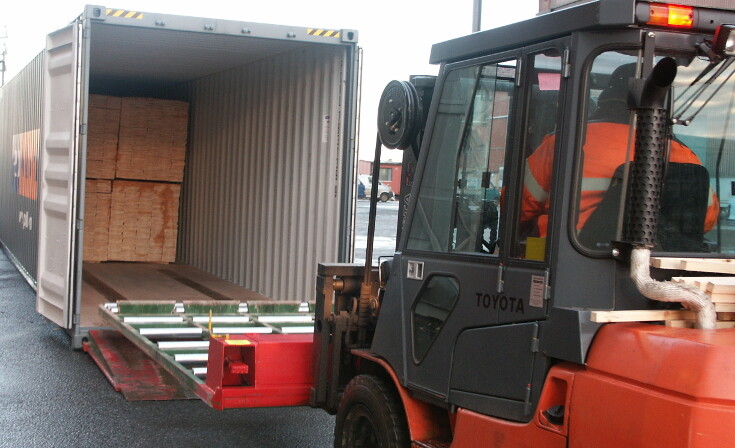

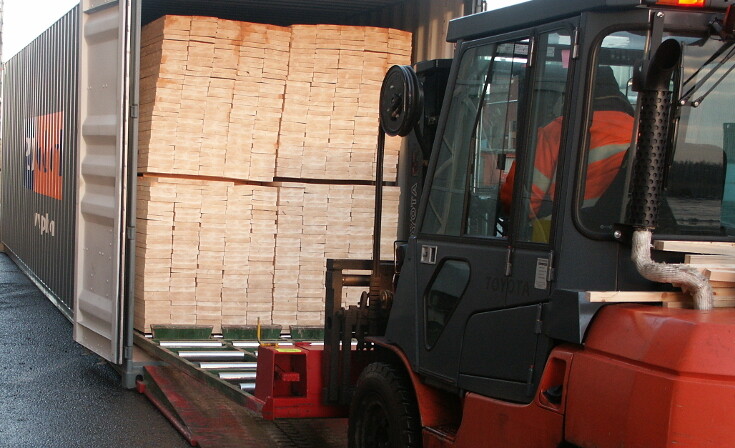

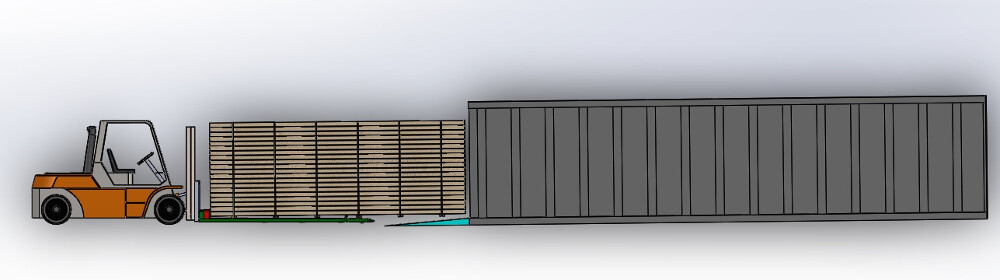

  • Once the ROLLIN machine is as deep as possible in the container the forklift lifts the rear end and the freight units are rolling to the container floor and the platform is pulled out.
  • Heavy duty ROLLIN machines with steel deck and rolls have pushing beams as standard.
  • ROLLIN POM-roll-deck version also has pushing beams as well.

We have two sizes of ROLLIN machines

  • ROLLIN 15 -capacity 15 tons /33 000lbs – Forklift recommendation 5tons (11.000lbs) or more.
    • Machine length 415cm (13ft. 6 in.), width 213cm (7ft)

  • ROLLIN 8-capacity 8 tons /17.700lbs – Forklift recommendation 3tons (6.600lbs) or more.
    • Machine length 415cm (13ft. 6in.), width 109cm (3ft. 6in.)


EXAMPLES of products to be loaded

You can load timber(lumber) bundles, glue beams, plywood bundles, steel and aluminium sheets and beams. With a disposable pallet you can load bags, big bags, boxes, machines, etc.

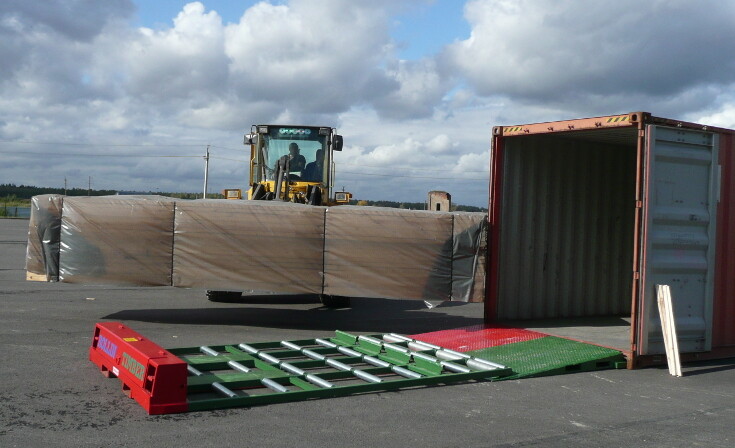

ROLLIN 15

steel deck, steel rolls, pushing beams

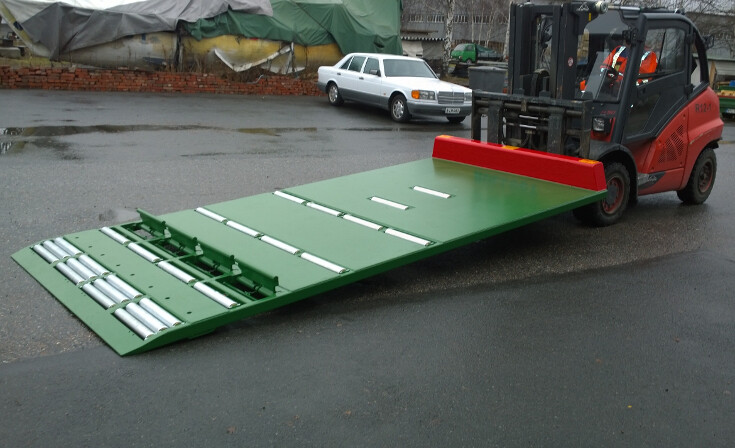

ROLLIN multifreght with turning beams by DeMACH

ROLLIN 15

with POM rolls and pushing beams

ROLLIN 15 POM rolls and pushing beams

ROLLIN 8 Narrow

with steel deck, rolls and pushing beams

ROLLIN 8 narrow with steel deck rolls and pushing beams

ROLLIN 8 Narrow

with POM rolls and pushing beams

ROLLIN 8 narrow with POM rolls and pushing beams

Advantages of using ROLLIN Fast Loading system:


  • A small forklift and a ROLLIN machine can load freight units, which are 2-3 times heavier than the lifting capacity of the forklift
  • You can load anywhere indoors, outside in the yard where there is space and driving distance is shortest
  • A fixed place under the roof is not needed for loading
  • A low investment, payback time less than a year for ROLLIN machine
  • Easy maintenance and minimum cost, no motor or electricity
  • You can load 3-5 containers/hour with a small loading team
  • You can load timber bundles which have or do not have runners strapped to the bundles using ROLLIN machines with POM-rolls
